Hondata’s KPro Engine Management System, a sophisticated tool that empowers users to unlock the full potential of their engines through advanced tuning capabilities. Enthusiasts seeking to elevate their Honda and Acura vehicles to new performance heights often turn to Hondata, a renowned name in aftermarket tuning solutions.
Today, the latest iteration of is KPro V4, which is a chipped ECU that allows users to monitor and change the operation of the Engine Control Unit (ECU). Let’s explore the unique characteristics and features that make the KPro V4 a powerful asset for enthusiasts and tuners.
Key Components of KPro:

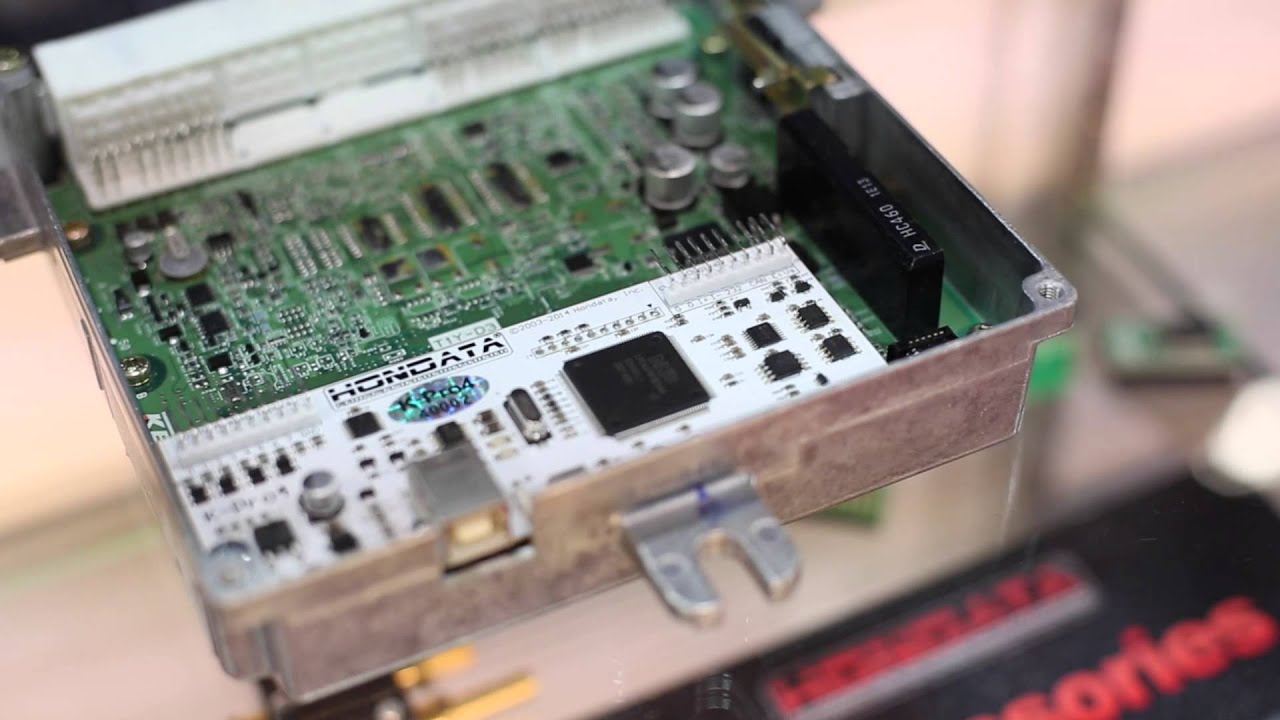

- Modified ECU: The KPro system involves adding a daughterboard and a USB connector to the stock ECU. This modification allows for a direct interface with a computer for in-depth tuning.
- K-Pro K-Manager Software: Users engage with their engine’s performance through the K-Manager software. The KManager Windows-based software enables users to edit parameters and tables, upload calibrations, and perform data logging. It offers high and low-speed ignition and fuel tables, fuel trim adjustments, rev limiter control, and more.
- USB Connectivity: The inclusion of a USB port on the modified ECU facilitates seamless communication between the ECU and a computer. This connectivity is essential for programming and data logging. With KPro v4, it can also connect via bluetooth connection, which is a lot more advanced than when I had it as KPro v2 nearly 15 years ago.
Unique Characteristics:
- Active Modification: Unlike passive modifications, the K-Pro is an active modification that requires users to understand its operation fully. It empowers users to take full advantage of modifications, from simple bolt-ons to extensive engine work.
- Versatile Compatibility: The KPro V4 fits inside the ECU and is designed and assembled in the USA. It features a USB connection for speed and compatibility with a notebook PC running Windows.
- Built-in Calibrations: The KPro V4 comes with many built-in calibrations for common engine combinations, providing a solid foundation for tuning.
- Data Logging: With onboard data logging memory (8 MB), the K-Pro allows users to log engine data to a laptop and analyze performance over time.
- Expanded Tables: It boasts expanded fuel and ignition tables, both in rpm and load, supporting up to 60 lbs of boost and 11,000 rpm.
- Advanced Features: The KPro V4 supports features like launch control with anti-lag, three multi-purpose outputs for nitrous control, lambda tracing, boost control via PWM output, Bluetooth support, and Ethanol sensor input for flex-fuel capability.
Vehicle Compatibility:
Here is a list of vehicles compatible with the Hondata K-Pro V4:
- 2002-2004 Acura RSX Type-S (PRB ECU)
- 2002-2004 Acura RSX Base model with manual transmission (PND ECU)
- 2002-2005 Honda Civic Si (EP3) (PNF ECU)
Additionally, the K-Pro V4 can be configured for various applications, including:
- K20/24 engine swaps into other chassis (Must use 02-04 RSX engine harness, PND or PNF ECU for 5-speed, PRB ECU for 6-speed)
- 2005-2006 Acura RSX base model with manual transmission (Requires 02-04 RSX PND or PRB ECU, conversion harness, and 02-04 RSX primary/upstream oxygen/air-fuel sensor)
- 2005-2006 Acura RSX Type-S (Requires 02-04 RSX PRB ECU, conversion harness, and 02-04 RSX primary/upstream oxygen/air-fuel sensor)
- 2001-2005 Honda Civic D17A with manual transmission (Requires 02-04 K Series ECU – PRB, PND, PNF – and custom Hondata cam gear)
- 2000-2005 Honda S2000 (Requires specially modified 02-04 RSX PRB ECU, special mounting bracket, and additional engine components to be changed)
- 2003-2006 Honda Element with manual transmission (Requires specially modified 02-04 RSX PND ECU and conversion harness)
Tuning Capabilities with KPro:
The K-Pro system provides users with a vast array of tuning capabilities, including:
- Fuel Maps: Precise control over the air-fuel ratio throughout the entire RPM range.
- Ignition Timing: Fine-tuning the ignition timing for optimal performance and efficiency.
- Cam Angles: Adjusting cam angles to optimize power delivery and efficiency.
- Rev Limiter: Customizing the engine’s rev limiter for specific performance requirements.
Installation and Setup: Installing K-Pro involves a hardware modification to the ECU, adding a USB port. Once installed, users connect their laptops to the ECU, running the K-Manager software to make adjustments. The setup also includes a comprehensive manual to guide users through the process.
Datalogging and Analysis: One of the standout features of K-Pro is its datalogging capability. Users can connect their laptops to the system and record over 40 sensor values. This data can then be analyzed to gain insights into the engine’s performance, aiding in further refinements and optimizations.
Nitrous and Boost Integration: K-Pro is designed to seamlessly integrate with nitrous systems and boosted applications. The system includes a control panel for nitrous operation, allowing users to tailor the engine management to accommodate these performance-enhancing components.
Advantages of KPro:
- Complete Control: Users have unparalleled control over engine parameters, allowing for fine-tuning to suit specific modifications and performance goals.
- Real-time Adjustments: The ability to make real-time adjustments while the engine is running enables on-the-fly optimizations for different driving conditions.
- Custom Calibrations: K-Pro ships with various pre-made calibrations, and users can create custom calibrations with the K-Manager software, tailoring the tuning to their unique setups.
Challenges and Considerations: While K-Pro offers advanced tuning capabilities, users should be prepared for a learning curve. Effective tuning requires a solid understanding of engine dynamics, fueling, and ignition concepts. Professional tuning is recommended for optimal results.
Ordering Challenge and Alternatives:
The process of obtaining the Hondata K-Pro V4 involves a unique challenge, mainly related to the modification of the ECU. Here are some key points:
- Sending Your ECU to Hondata:
- Your car’s ECU needs to be sent to Hondata’s facility in Torrance, California, for modification.
- The modification involves actual soldering and other work on the Honda ECU.
- The upgrade must be ordered through a Hondata dealer as Hondata does not sell directly to the public.
- Wait Time:
- Sending your ECU to Hondata and waiting for the modification can result in downtime for your vehicle.
- The wait time can vary, and customers should be prepared for this period of inactivity depending of vendor/shop/dealer you order from.
- Alternative Option – Buying Without ECU Core:
- Some shops or dealers may offer an alternative where you can purchase the Hondata K-Pro V4 without sending in your ECU as a core.
- This option allows you to avoid the wait time associated with sending the ECU for modification.
- However, buying without the ECU core might come at a higher price, as it eliminates the need for the customer to go through the hassle of sending their ECU and waiting.
It’s essential for customers to weigh the pros and cons of these options based on their preferences, budget, and urgency. While the traditional process involves sending in the ECU, the alternative of purchasing without the ECU core offers a more expedited solution, albeit at a potentially higher cost.
Hondata’s K-Pro stands as a pinnacle in advanced engine management, providing enthusiasts with a tool to unlock the true potential of their vehicles. The system’s intricate tuning capabilities, combined with datalogging and real-time adjustments, make it a go-to choice for those seeking ultimate control over their engine’s performance. Embrace the power of K-Pro and embark on a journey to master the art of precision tuning. I’m planning on eventually adding KPro to my DC5 project once I finish a few upgrades and bolt ons.
Which aftermarket tuning ECU do you have?
